Computer Architecture in 2026: What's Actually Changed

Computer architecture is the blueprint that defines how a computer's components work together to process data and execute tasks. Rather than focusing on the physical construction of the hardware, it describes how processing, memory, storage, and communication are organised to deliver performance. For decades, computer architecture was largely the domain of chip designers and hardware engineers. Fast forward to today, this is definitely no longer the case. This comes as artificial intelligence moves from experimentation into production. As a result, the limitations of traditional computing have now become impossible to ignore. Organisations have to rethink everything, starting from the processor design and memory hierarchies to networking, energy consumption, and the cost of running AI at scale. Computer architecture has become a strategic business consideration, shaping everything from infrastructure investments to long-term competitiveness.

What is Computer Architecture?

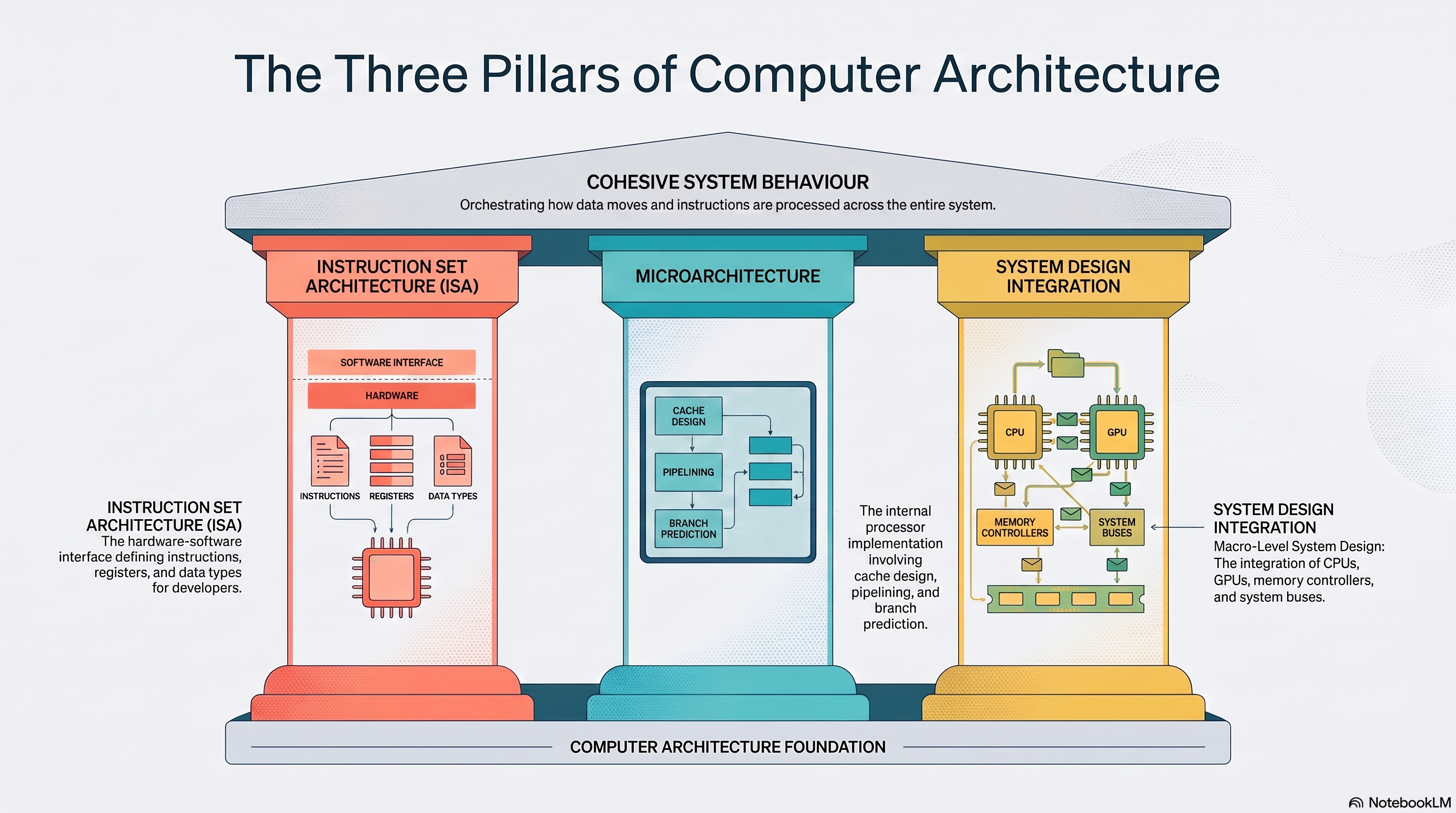

At its core, computer architecture defines how hardware and software work together to execute programs. It determines how data moves through a system, how instructions are processed, and ultimately what a computer can do. Rather than focusing on a single component, architecture defines the design, structure, and behaviour of an entire system and how its components work together. It bridges the gap between software and hardware through a series of interconnected layers. This means that computer architecture is built on three fundamental pillars:

• The set of commands that a processor understands is called instruction set architecture (ISA). It links the software to the hardware by defining the instructions that programmers can write, the registers (small storage locations inside the processor) and the data types that the processor can handle.
• Microarchitecture is the way in which the processor executes the instructions internally. It has things like cache, pipelines, branch prediction, execution units, etc. All these things affect the speed and efficiency of the processor.
• The third pillar of computer architecture is System Design (System-Level Architecture or Hardware Integration). It’s about how all the key parts like processor, memory, storage, networking and specialised hardware like GPUs and NPUs all work together as one whole computing system.

How has Computer Architecture changed in 2026?

What has changed in 2026 is not these foundations, but the demands placed upon them. AI workloads process data more quickly. As a result, they require significantly greater memory bandwidth and consume far more power than traditional enterprise applications. This means that computer architecture has become a strategic consideration rather than a purely technical decision.

This framework was laid out well in EM360Tech's "What is Computer Architecture? Definition, Types, Structure" article, which walks through the same three pillars alongside Von Neumann, Harvard models and RISC versus CISC. It is still the right scaffolding and will likely remain the correct one for a long time. What's worth revisiting is what's currently filling it in, because the pace of change inside each pillar over the past eighteen months has been unusually fast, even by this industry's standards.

In 2026, system design is about connecting multiple chiplets instead of relying on a single monolithic die. Instruction set architecture now has a serious, funded, and increasingly enterprise-grade open alternative to x86 and Arm in the form of RISC-V, rather than the two-horse race the "RISC vs. CISC" framing implied a few years ago. Microarchitecture design is, in specific and well-documented cases, starting to involve machine learning models as part of the design process itself. This basically sums up that computer architecture is no longer just a topic for researchers and engineers. It's now at the centre of commercial competition, with vendors bringing new chip designs to market and competing over real-world AI performance.

Each of these changes is discussed in turn in the rest of this article, with evidence given for every claim. That’s important because much of today’s dialogue about computer architecture in 2026 relies on sweeping pronouncements about AI revolutionising hardware that don’t specify which technologies are already deployed, which are still in research, and where industry experts diverge.

The Rise of Chiplet Architecture

For much of computing history, "the processor" was one piece of silicon, made in one process. That assumption is no longer true for most of the high-performance systems being built today. Chiplet architecture takes a processor and builds it out of several smaller dies, each die designed for a specific function and sometimes manufactured on completely different process nodes. Chiplets are assembled into a single package that has gone from an engineering curiosity to the default for server- and AI-class silicon. Both AMD and Intel now manufacture most of their data-centre processors in this manner, dividing compute dies from I/O dies so that each can be manufactured on whatever node makes economic sense, instead of forcing the entire chip on the most expensive process that is available.

The technical glue that makes this approach work is a standard called UCIe - Universal Chiplet Interconnect Express, which is an open specification launched in March 2022 by a consortium that includes AMD, Arm, Google Cloud, Intel, Meta, Microsoft, Qualcomm, Samsung and TSMC, among others. UCIe defines the electrical, physical and protocol layers allowing chiplets from different vendors, fabricated on different process nodes and assembled by different assembly partners, to interoperate reliably inside the same package. The standard has moved quickly: version 1.1 shipped in August 2023, version 2.0 in August 2024, and version 3.0 in August 2025, which doubled peak data rates from 32 gigatransfers per second to 48 and 64 GT/s while adding runtime link recalibration and faster fault-recovery mechanisms designed specifically for the reliability demands of always-on AI infrastructure. But that cadence, three major revisions in less than three years, is a sign of how central interconnect standards have become to computer architecture. A decade ago, there was no similarly fast-moving standards process for anything at this layer of the stack.

The commercial reason for the change is pretty basic because monolithic dies get more expensive and less reliable to manufacture as they grow. The reason is because its a single defect anywhere on a large die that can ruin the whole chip. Splitting a design into smaller chiplets, each with a higher manufacturing yield, and binning or replacing individual bad dies before final assembly, is a more economical path to the enormous transistor budgets modern AI accelerators require. Analysts tracking the chiplet market project CPUs will remain the largest chiplet category through 2026 by unit volume, but custom AI accelerator chiplets- dies built specifically for training and inference workloads are the fastest-growing segment, reflecting where the economic pressure in the industry currently sits.

The architectural consequence is that "system design," one of the classic three pillars, no longer means designing peripherals around a processor core. It means designing a fabric by deciding how many dies a product needs, what goes on each one, how coherent memory traffic gets managed across die boundaries, and how the whole assembly behaves as a single logical system even though it's physically several separate pieces of silicon glued together at extremely high bandwidth.

RISC-V Enters the Data Centre

The instruction set architecture pillar has also changed drastically over the years. RISC and CISC were always presented as two philosophies that competed with describing how a processor decodes instructions. RISC is said to be favouring a small number of simple, fixed-length instructions (the approach behind ARM). Meanwhile, CISC favoured fewer but more powerful variable-length instructions that can do more per line of code (the approach behind Intel and AMD's x86). Fast forward to 2026, this framing needed a third entry known as RISC-V. This is an open instruction set architecture. It was first developed at UC Berkeley and can be implemented in silicon by any company without paying a licensing fee.

RISC-V spent most of the 2010s and early 2020s mostly restricted to microcontrollers and academic research. It was actually held back by a real, well-documented problem. You see, without a standardised application-level software profile, chips built by different RISC-V vendors could end up incompatible enough with each other. This means that a single Linux distribution couldn't reliably run across all of them. The good news is that changed with the ratification of the RVA23 profile in October 2024. It defined a common baseline of extensions that RISC-V application processors are expected to support, giving software developers and operating system vendors a stable target to compile against for the first time. At the RISC-V Summit Europe 2026 in Bologna, Krste Asanović - RISC-V International's chief architect and a professor at Berkeley described 2026 specifically as the year server-class RVA23 silicon began appearing. It was backed by the newly ratified RISC-V Server Platform Specification 1.0 and by mainstream operating system support, including full RVA23 compatibility in Canonical's Ubuntu 26.04 LTS release.

Adoption is no longer just an ambition; it's happening in practice. One market analysis published in early 2026 estimated RISC-V's global hardware market stands at roughly 25 per cent. This describes the architecture as a legitimate third pillar of computing alongside x86 and Arm rather than a niche alternative. Qualcomm, Nvidia, Google, and Meta are all now building on RISC-V in some capacity. The chip design firm SiFive raised a staggering $400 million Series G round in 2026 at a $3.65 billion valuation with Nvidia and Apollo as backers. This was done ahead of a planned IPO, and Alibaba's T-Head division shipped the XuanTie C930, a 64-bit out-of-order server-class RISC-V CPU. These benchmark scores are seen to be very competitive with mainstream server processors.

RISC-V isn't just attractive because it's free to license. Its modular design gives chipmakers the flexibility to build processors tailored to different workloads and applications. As a result, the ISA is built from a small mandatory base plus optional extensions. This allows designers to add vector and matrix instruction extensions directly into a general-purpose core. It lets AI inference workloads run on the same silicon that handles the operating system rather than being routed out to a physically separate accelerator chip. That eliminates a round-trip of memory copies between a CPU and an AI chip, which matters directly for both latency and power consumption in edge and embedded AI applications. A concrete architectural advantage is tied directly to why 2026 has been RISC-V's breakout year specifically, rather than an earlier or later one.

Memory Is the New Bottleneck

If there's one shift that changes the actual centre of gravity of computer architecture as a discipline in 2026, it's this: the hardest, most serious design problem is no longer how a processor decodes instructions. It's how fast data can move between compute and memory. The scale of large language model training and inference has exposed what engineers call the memory wall. This is basically the widening gap between how fast a processor can compute and how fast memory can supply it with data. High-bandwidth memory (HBM), a technology that stacks DRAM dies vertically and connects them to a processor through thousands of through-silicon vias, has become the primary technology addressing that gap, and its evolution over the past two years illustrates just how quickly this layer of the stack is now moving. JEDEC, the industry body that standardises memory technology, published the formal HBM4 specification in April 2025, doubling the memory interface width from 1,024 bits to 2,048 bits and defining bandwidth above 2 terabytes per second per stack, roughly double the 1.2 TB/s ceiling of the preceding HBM3E generation. SK Hynix, which held roughly 57 per cent of global HBM revenue as of the third quarter of 2025 according to Counterpoint Research, showed a 16-layer, 48-gigabyte HBM4 device exceeding 2 TB/s at CES 2026, with mass production targeted for the third quarter of that year; Samsung followed by shipping HBM4E samples in May 2026 rated at 3.6 TB/s per stack, several months ahead of SK Hynix's own HBM4E schedule. Nvidia's Rubin GPU platform, entering production in early 2026, pairs eight stacks of HBM4 for roughly 22 terabytes per second of aggregate memory bandwidth, which is nearly triple the bandwidth of the preceding Blackwell generation.

Supply has not kept pace with demand. Analysts at BNP Paribas projected the global HBM market would more than double to roughly $76 billion in 2026, and both SK Hynix and Micron have stated their entire 2026 HBM production capacity was already fully allocated to customers well before the year began. That supply constraint is not a side note to the architecture story, but it's central to it. A handful of memory manufacturers now effectively set the pace at which the entire AI hardware industry can ship new accelerators, because a finished GPU or AI ASIC is only as useful as the memory bandwidth available to feed it.

This is also why UCIe and similar chip-to-chip interconnect standards, discussed above, now get treated with the same architectural seriousness that instruction set design once received on its own. A chip's ISA determines what programs it can run; its interconnect and memory bandwidth increasingly determine if it can actually execute those programs at a competitive speed for the workloads that matter most today. Reinforcement-learning-based electronic design automation tools are also increasingly used specifically to model and optimise this layer. Which means predicting interconnect timing, signal congestion, and die-to-die layout tradeoffs across design spaces too large for engineers to explore by hand, a point returned to below.

Specialised Silicon

Coverage of "future" computing architectures like GPUs, neuromorphic chips, and quantum processors all tends to lump them together as a single speculative category. That was a defensible simplification even a couple of years ago. It no longer is; these three now represent distinct stages of technological maturity, and treating them as one bucket obscures more than it explains.

AI accelerators like GPUs, TPUs, and custom ASICs purpose-built for machine learning are now core infrastructure rather than a future trend. A significant and fast-growing share of current hardware architecture research is focused specifically on this category: purpose-built matrix-multiplication engines, processing-in-memory designs that reduce data movement, and wafer-scale chips built to handle the largest model training runs. Of the three categories, this one is the most mature. It's already being deployed at scale in hyperscale data centres.

Neuromorphic computing is a way of designing computer chips to work more like the human brain. Instead of running continuously like a traditional processor, neuromorphic chips only process information when something happens. Intel's Loihi research chips and IBM's NorthPole processor are real chips that have already been built and tested. They have shown they can perform some AI tasks much better than conventional processors. This can be seen particularly in devices that are always monitoring their surroundings or running AI directly on devices instead of in the cloud.

However, researchers who are tracking the field closely have been adamant that the limiting factor is software and tooling, not the chips themselves. There is no stronger programming framework for increasing neural networks comparable to what PyTorch and CUDA offer. They aren't well suited to today's mainstream AI models, and only a small number of engineers know how to build software for them. Neuromorphic computing looks like a very useful addition to GPU-based deep learning for narrow, power-constrained edge use cases in 2026. It isn't designed to replace existing processors for all types of computing, and it isn't currently developing in that direction either.

Meanwhile, Quantum computing has moved from an open-ended "someday" framing to specific, falsifiable, dated claims. IBM has publicly committed to demonstrating verifiable quantum advantage on a real computational workload by the end of 2026. They aim to do this by using its Nighthawk processor, a 120-qubit chip with 218 tunable couplers which was unveiled in 2025. This is paired with an open "quantum advantage tracker" that invites third-party researchers to test candidate problems against classical baselines rather than just accepting the claim on IBM's word alone. In addition to this, IBM's longer roadmap targets a fault-tolerant, error-corrected system called Starling by 2029. This uses a new class of error-correcting codes (quantum low-density parity-check, or qLDPC, codes) designed to cut the number of physical qubits needed per logical qubit by up to 90 per cent. This is a massive shift compared with the surface codes used in earlier demonstrations. The architectural framing has changed, with the industry constantly talking about "quantum-centric supercomputing.” These are hybrid systems where a quantum processor handles a specific, hard sub-problem embedded inside a larger classical computing pipeline compared to a quantum computer that replaces classical hardware outright. Unlike the broad claims made a few years ago about quantum computing changing everything, these two concepts are based on specific architectural developments and real engineering progress.

AI in Chip Design

Another important change in 2026 is that AI is no longer just running on computer hardware. In some areas, it is also helping engineers design the hardware itself. The best example is chip floorplanning. One part of chip design involves deciding where each major component should be placed on the silicon die. Google DeepMind's AlphaChip uses AI to optimise this process. It evaluates different layouts, learning through trial and error to produce designs that improve performance, power efficiency and manufacturing. Much like a game-playing AI chooses its next move, AlphaChip chooses where to place each component based on how it affects the overall design.

Another big change in 2026 is that AI is not just running on computer hardware. In some cases, it is also helping to design the hardware itself. One part of designing a chip is figuring out where to put all the parts. Google has used AlphaChip to do this better. It looks at layouts and learns from trying and failing to make designs that work better and use less power. AlphaChip decides where to put each part based on how it affects the design, kind of like a game-playing artificial intelligence.

Google used AlphaChip to help design its TPU chips, and other companies did the same.. Some researchers are not sure if AlphaChip really works that well. While people are still talking about it one thing is clear: artificial intelligence is becoming a tool in designing chips. This is still something people are discussing in the chip design field; it is not a fact that everyone agrees on. The idea that "artificial intelligence now designs chips more than humans" is not totally true. What is real is that this is a trend. Companies like Synopsys that make electronic design automation tools now offer intelligence tools that help with all parts of the design process. These tools do not replace engineers; they just help them do their work better and faster.

Another area where people are doing research is using intelligence to help processors make decisions while they are running. By changing the chip, artificial intelligence helps with things like managing memory. Guessing what a program will need next. These changes can make the chip work better without changing its parts. Researchers have shown that artificial intelligence can help processors make some decisions while they are working. One study found that a type of intelligence called deep learning can manage memory as well as or better than traditional methods. This led to research on artificial intelligence systems that help with memory prediction and guessing what comes next, which helps processors predict future tasks more accurately.

The main thing that researchers have found out is that artificial intelligence models can do better than methods in simulations. The main problem is actually using them: a review in 2025 said that artificial intelligence models are usually too big and too slow to work in the time it takes to make decisions about memory. What actually gets used in chips is usually a version of what a bigger model learned: a small rule or a lookup table instead of a live artificial intelligence model running all the time.

A good example of intelligence working as an architect is in quantum error correction. Quantum computing needs to find and fix errors in qubits before they happen, which is a problem to solve. This makes it a good problem for intelligence to help with. Google DeepMind and Google Quantum AI made a system called AlphaQubit. It was described in a paper in 2024 about using intelligence to improve error correction for quantum computers. This system worked better than methods when tested with real data from Google's quantum machines. Many teams have since made decoders that work in hardware to meet time limits. By 2026, researchers were already working on decoders that can manage qubits at the same time, which is necessary to make error correction work. A decoder that cannot keep up with errors does not just slow down the machine; it makes the machine unable to work as a computer. In this way, artificial intelligence-based decoding is important for whether big quantum computers will be possible by 2029 or some other time.

Computer Architecture Enters a New Era

Returning to where this piece started: the three-pillar definition of computer architecture that EM360Tech's earlier article laid out, which was system design, instruction set architecture, and microarchitecture has not been overturned by anything discussed here. It remains the right way to decompose the discipline. What's changed, concretely and with the sourcing above to support it, is what fills each pillar in 2026. System design increasingly means orchestrating a fabric of chiplets connected over standards like UCIe rather than laying out peripherals around one die. Instruction set architecture now has to account for RISC-V as a genuinely competitive, open, enterprise-grade alternative to proprietary ISAs, not a hobbyist curiosity. While the microarchitecture design increasingly involves machine learning somewhere in the loop, in physical layout, in memory-hierarchy policy, and, at the frontier, in the error correction that determines if an entirely new computing paradigm works at all. It is also interesting to note even where, as with AlphaChip, the actual magnitude of AI's advantage over conventional methods remains a live, unresolved argument rather than a settled fact.

The throughline connecting chiplets, RISC-V, the HBM4 supply crunch, and AI-assisted design is the same one that has run through most of computer architecture's history: the discipline reorganises itself around whatever the dominant workload of the moment demands, the way it once reorganised around graphics rendering and later around mobile power efficiency. In 2026, that workload is training and running AI models at scale, and nearly every architectural shift covered here traces back to that single pressure. The fundamentals from the textbook have not disappeared. They've been forced to adapt, and that shift is now well documented enough to describe with actual figures instead of general impressions.

EM360Tech will continue examining how AI, chiplets, RISC-V and emerging computing technologies are reshaping the foundations of modern computing, and what these changes mean for the organisations building and running the infrastructure of the future.
